Flexible encoder cable   （英文版）

Application scope: (all specifications can be customized: outer diameter, use environment, bending radius, etc.)

The special low-capacitance insulation material ensures the lower core-to-core capacitance, and the optimized twisted pitch effectively reduces the near end, far-end crosstalk and attenuation. The shielding structure design of double shielding and streamline ensures that the cable is not interfered by external electric field at high frequency. In fact, the complicated installation conditions greatly challenge the cable quality assurance ability. After continuous optimization and improvement of design, Shanghai Mingrou has solved the problems of uncertain signal and near-end crosstalk far-end crosstalk caused by high-frequency attenuation, making the signal highly guaranteed and stable, and is widely used in various high-frequency signal transmission fields.

Cable characteristics: high flexibility, bending resistance, high anti-interference, and resistance to all kinds of grease (twisted pair+double shield (tin plating+aluminum foil)+streamline)

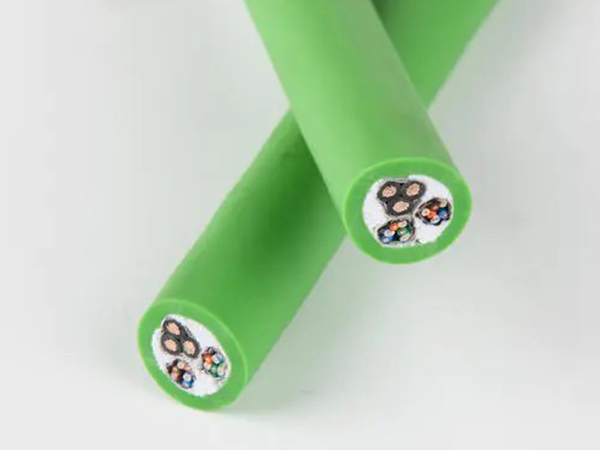

Cable structure:

Cable structure standard: refer to YD/T322-1996 and other related standards.

Conductor: it conforms to Class 6 standard in DIN VDE 0295 (or IEC 60228).

Insulation: Specially customized composite polyolefin insulation material with excellent tensile strength and insulation resistance index.

nsulation marking: conforming to DIN VDE 0293 standard.

Outer sheath: specially customized soft and corrosion-resistant elastomer sheath material, with good tensile strength and oil resistance index, meeting the requirements of RAL 7001.

Cable characteristic index:

Working voltage u/u0: s ≤ 0.75mm2, 300/300V.

                                  S≥1.0mm2，300/500V

Test voltage: 2500V, 50Hz, 5Min.

Characteristic impedance: 120 ω

Capacitance: the core-to-core capacitance is not more than 72pF/Km (according to the design requirements).

Small value of insulation resistance zui at 70°C: 20MΩ.KM

Temperature range: mobile installation:-5 ~+70 C (can be customized according to the use requirements)

Fixed mounting:-40 ~+80 C.

Minimum bending radius: mobile mounting: 7.5* cable outer diameter

Fixed press: 4.5* cable outer diameter
